A linkage bedformer and deep tillage renovator offered in two tyne layouts for raised-bed irrigated row cropping such as cotton, rice, sugarcane, wheat, and certain vegetables.

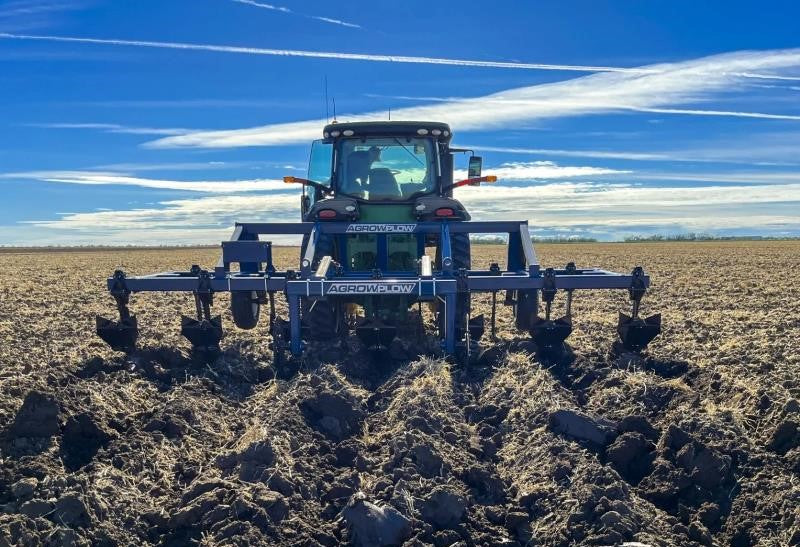

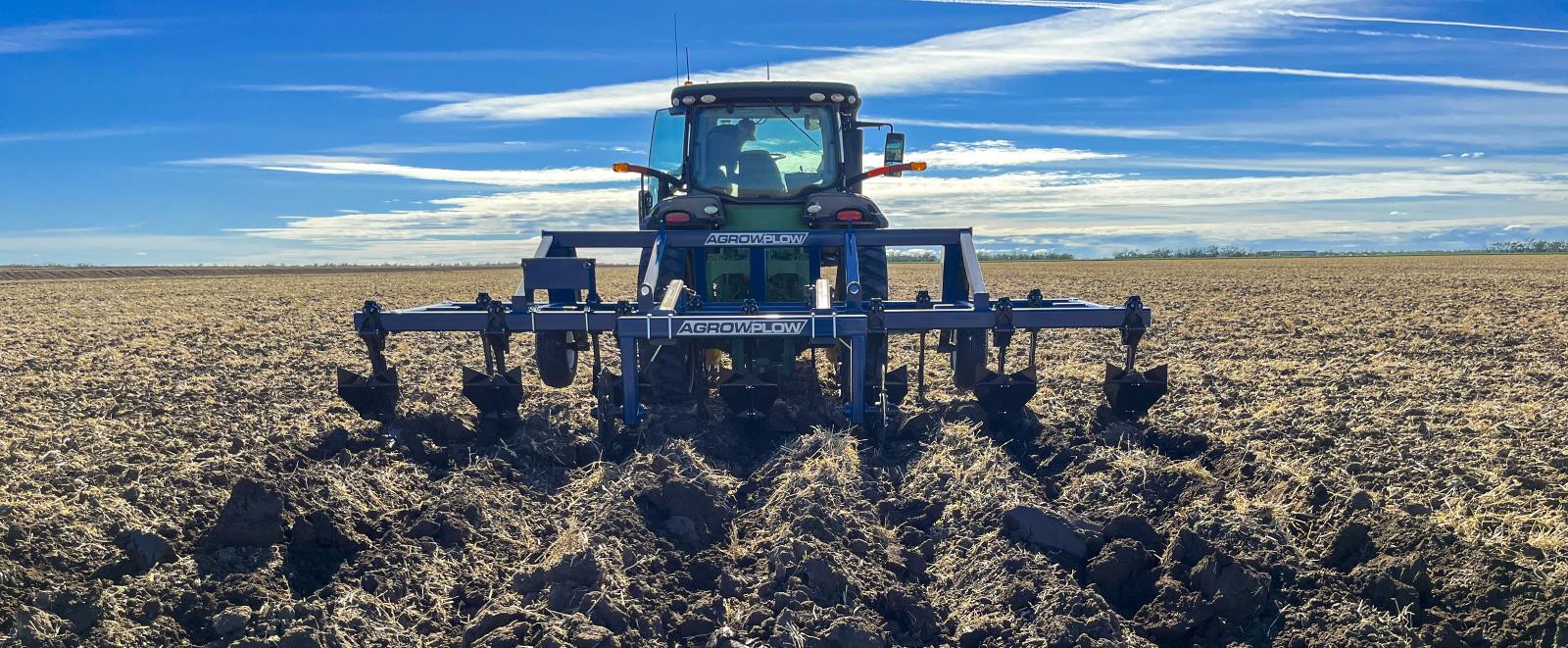

Our Agrowplow CP62 bedformer can be used for conventional deep tillage as well as raised bed bedforming. Break down and reform the bed in one pass, saving costs of requiring two machines and multiple passes. Designed for three point linkage tractor row cropping operations.
The CP62 is a highly versatile machine, functioning both as a conventional deep ripper and a row cropping bed former. This dual-purpose design allows farmers to break up compacted subsoils while simultaneously shaping raised beds for row-crop planting—all in a single pass.
By combining these two critical soil preparation tasks, the CP62 eliminates the need for separate machines and reduces the number of field passes required, significantly cutting down on fuel costs, labour, and machinery wear.

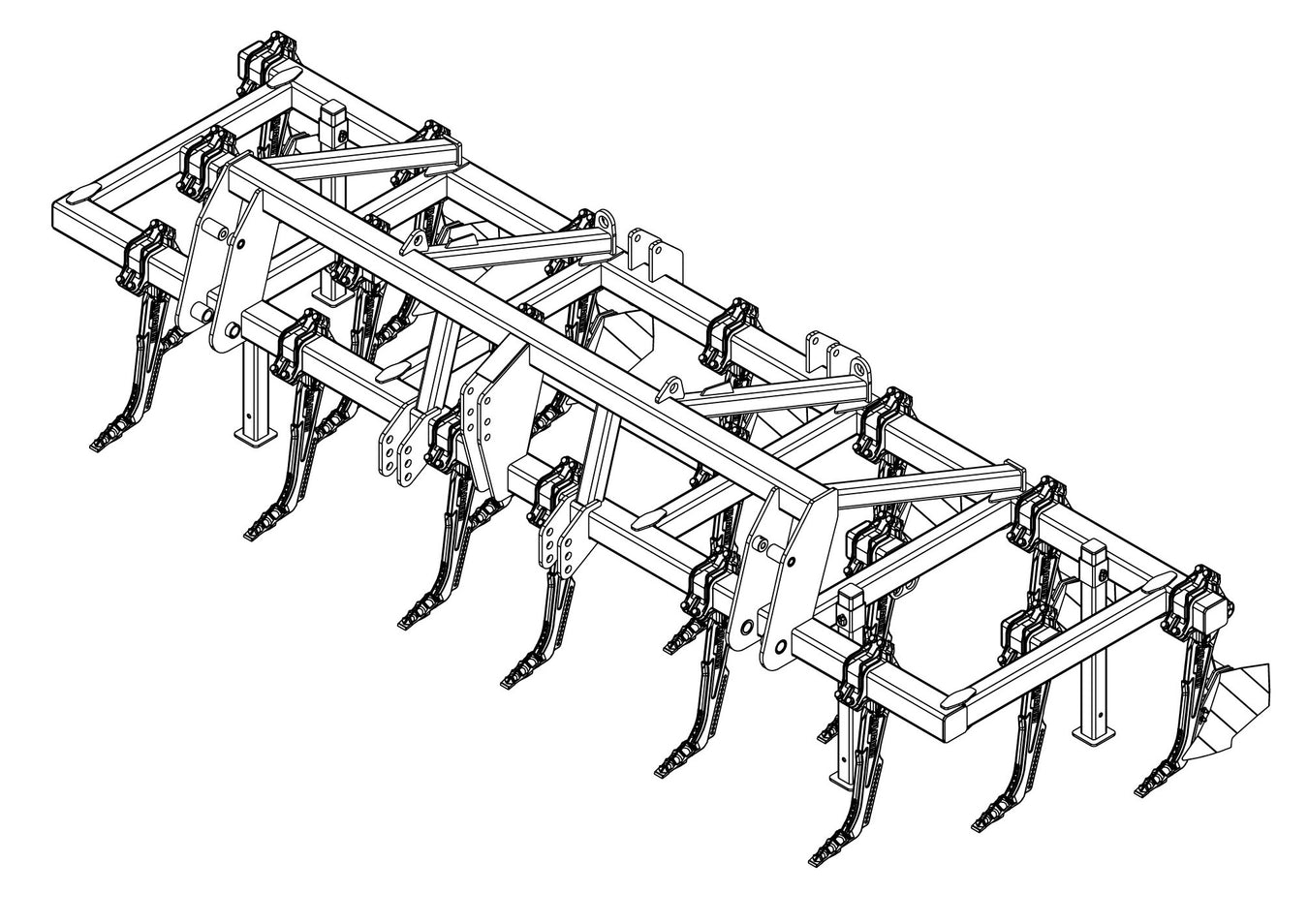

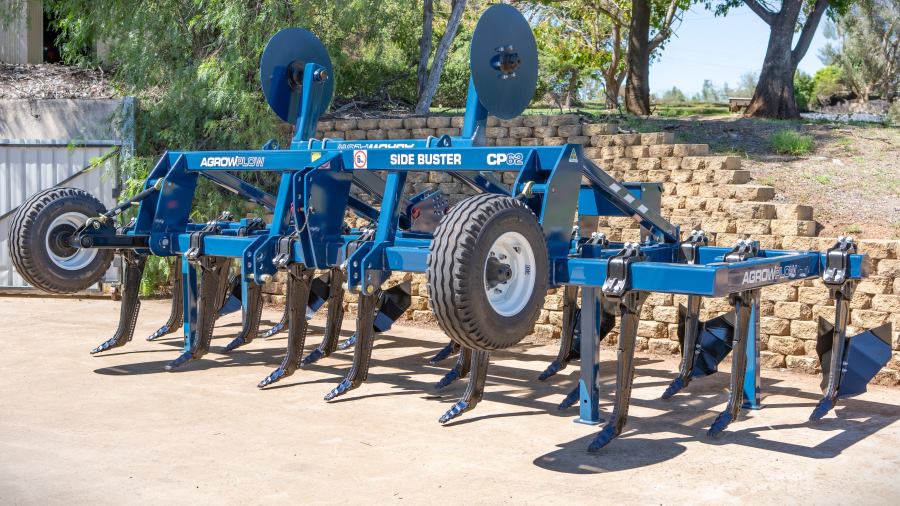

19-TYNE, 7 FURROW | View Tyne Layout
Prevent root zone compaction while maintaining the structure of the crop row.

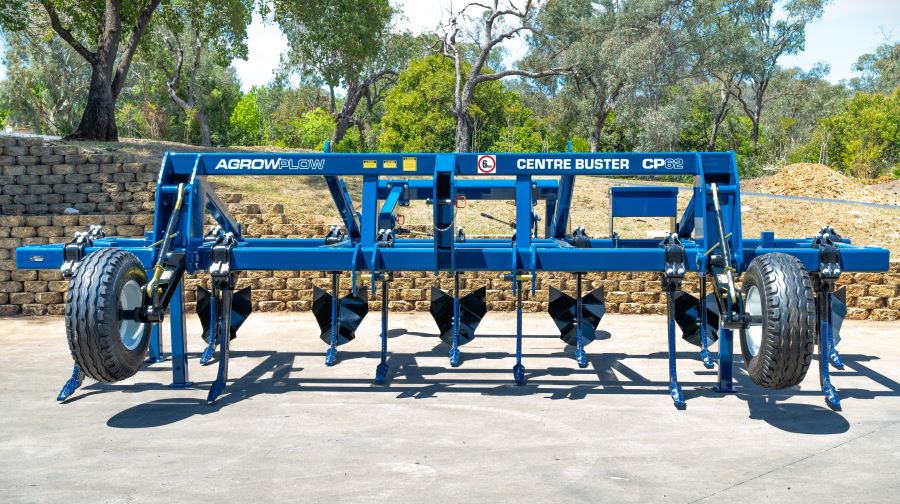

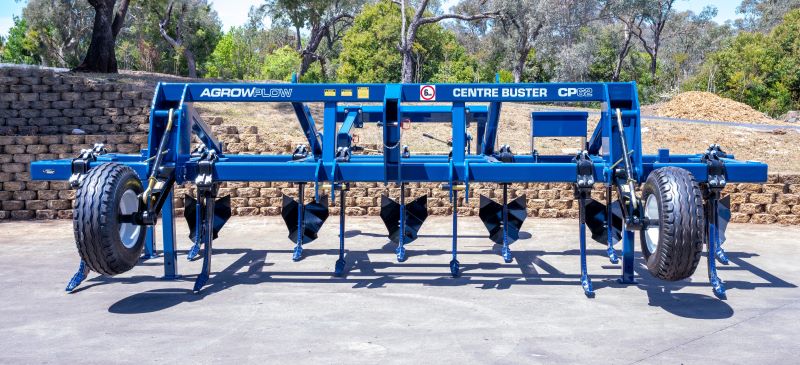

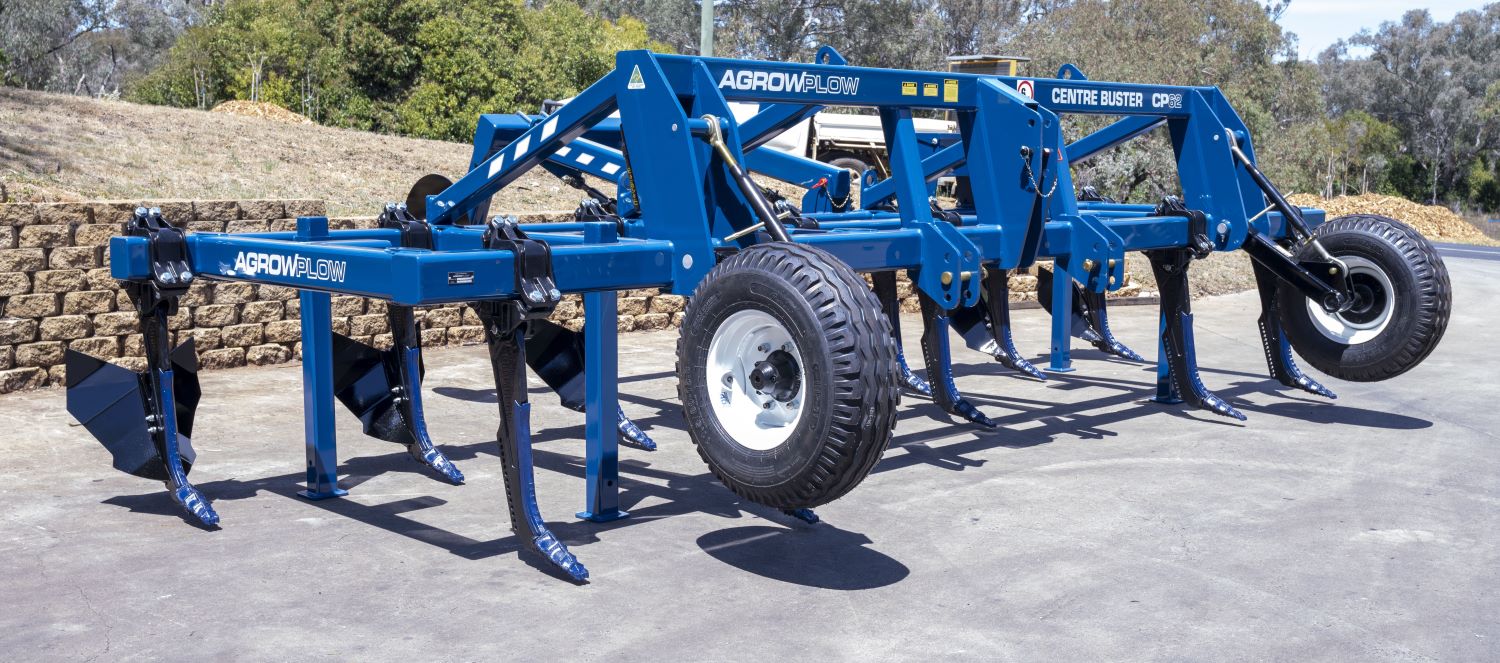

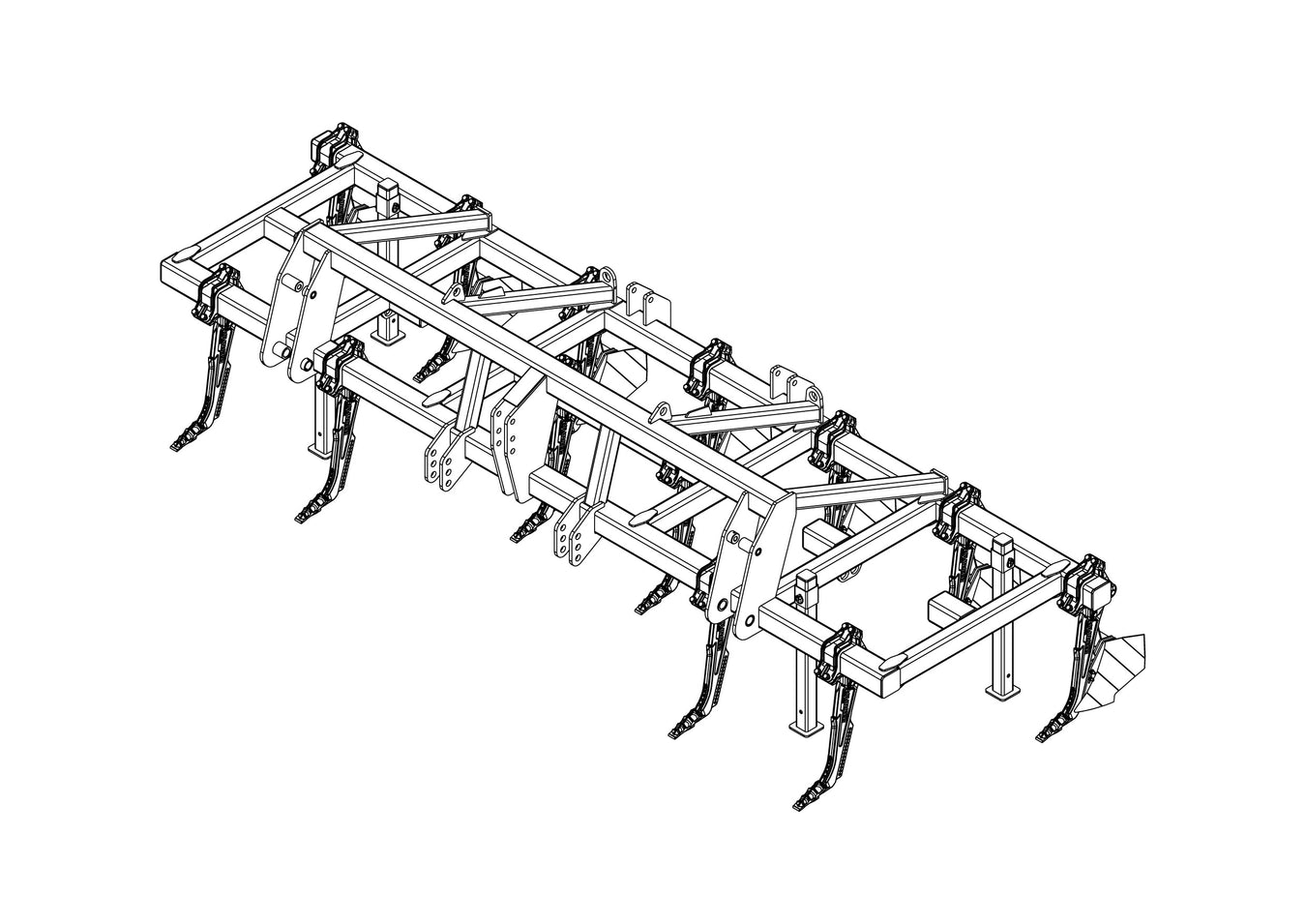

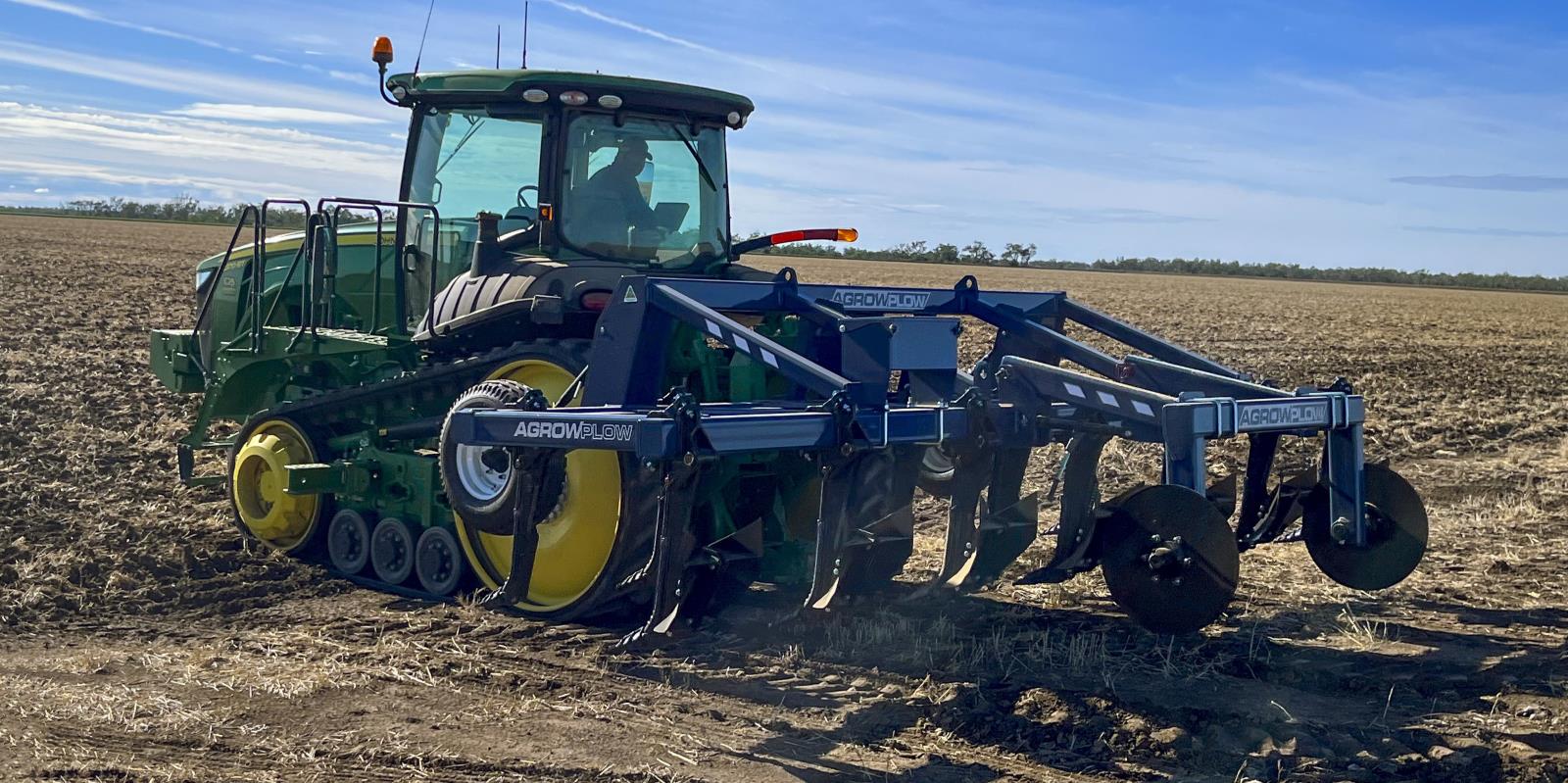

13-TYNE | 7 FURROW | View Tyne Layout

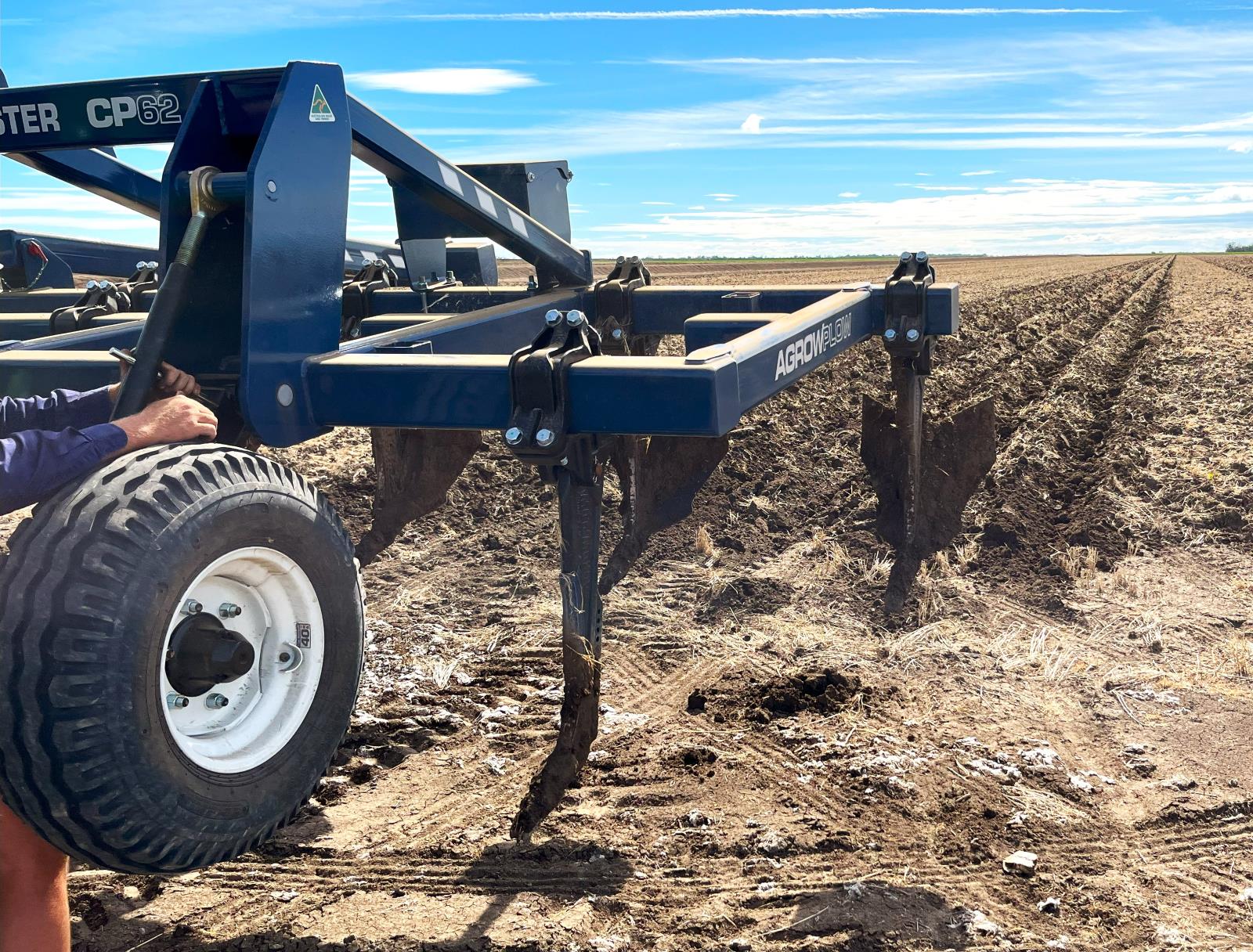

Break up soil compaction directly beneath the crop rows.
The cotton plough utilises our #9 Shank Assembly with 4,790 kg (10,560 lbs) rigid breakout, with a maximum working depth of 600mm (24").

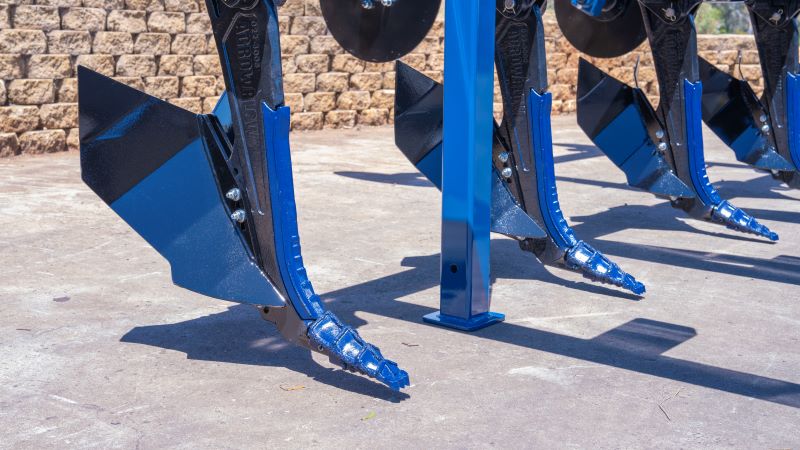

Take advantage of the superior subsoiling performance the #9 blades and shinguards provide. The shanks can also be fitted with shank options - such as mulch blades for better weed management.
The three-toolbar design is built from fully welded, heavy duty 150 x 150 x 9mm RHS steel and mounts to the tractor via a quick hitch CAT3 three point linkage (3PL).
An optional adjustable stabiliser arm is available to help prevent excessive tilting or swaying, ensuring that the cotton plough maintains a consistent depth and angle as it moves through the field.

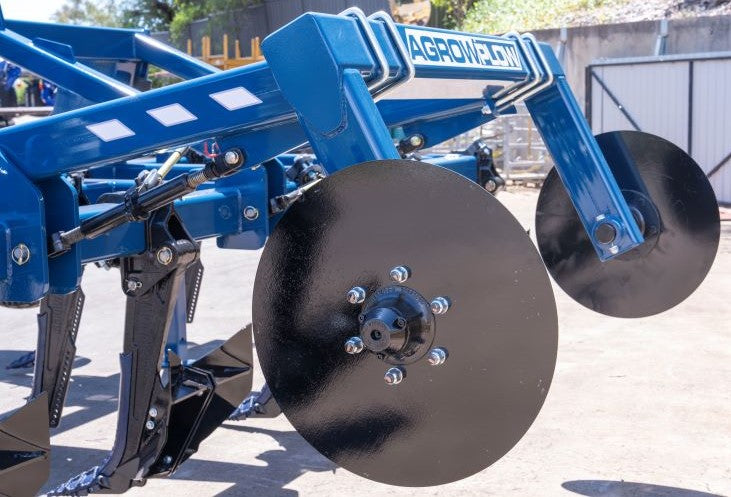

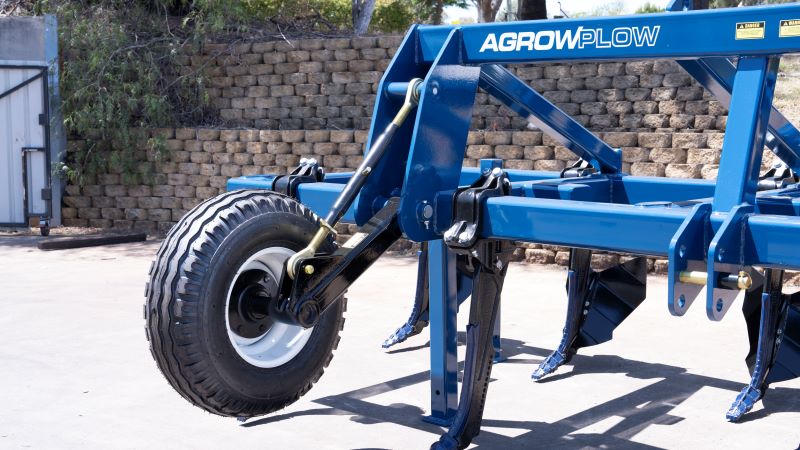

Height adjustable furrowers alongside dual 11.5/80-15.3 6 depth wheels enable farmers to adapt the plough to the requirements of their cotton bed.
Some shank options are mutually exclusive or may be used only under specific circumstances or with particular configurations. Shank options may increase draft requirements. Consult your dealer before considering these options.
All effort has been made to ensure the information presented is correct however, features and specifications may change without notice. Weights, dimensions and specifications are an estimate for standard configurations only and may change slightly during the manufacturing process.
